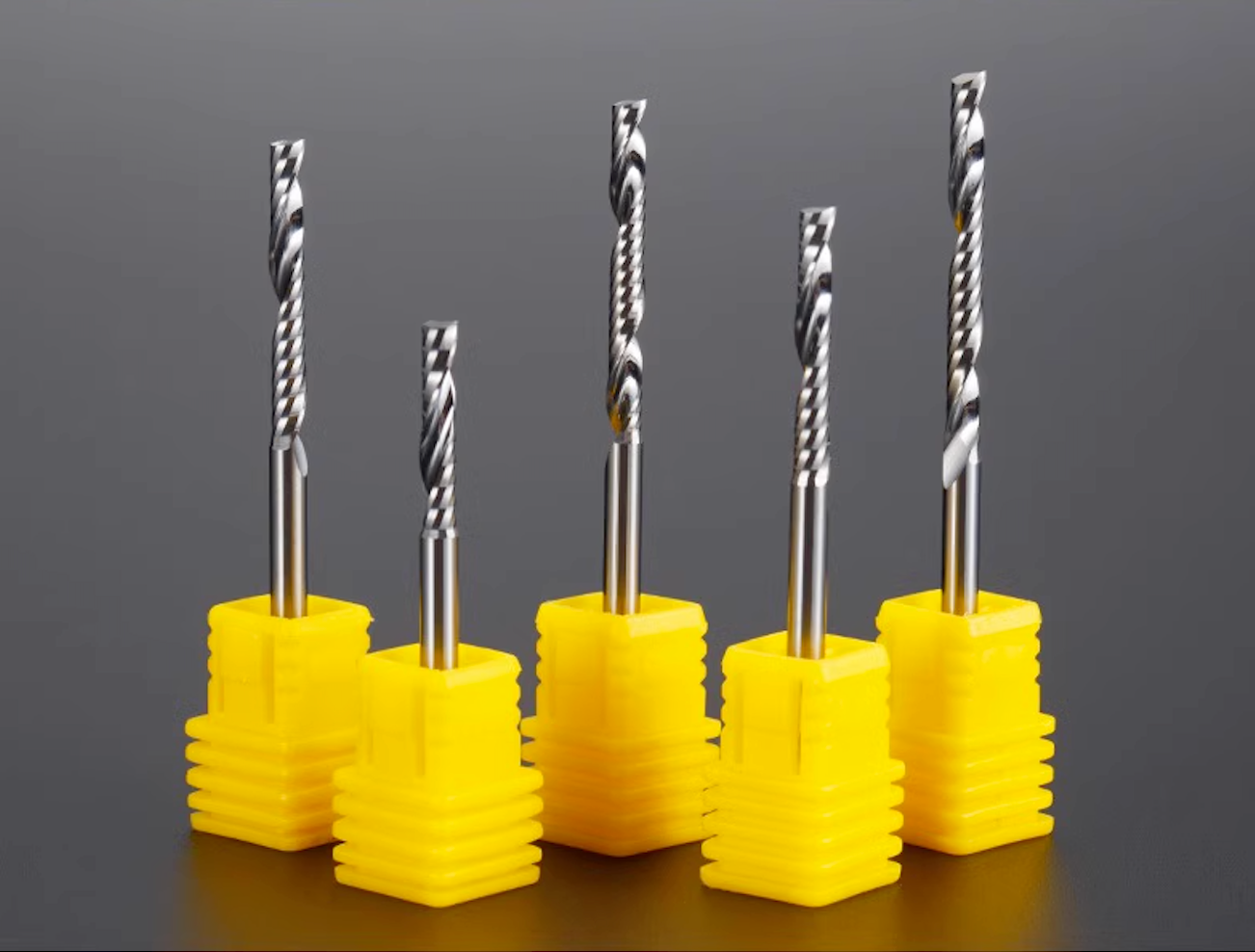

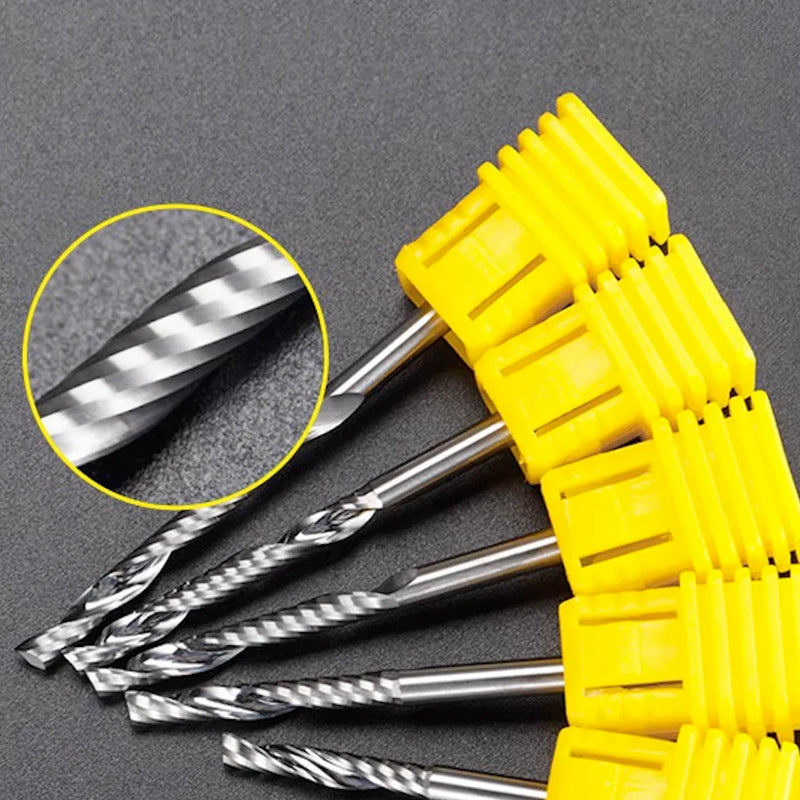

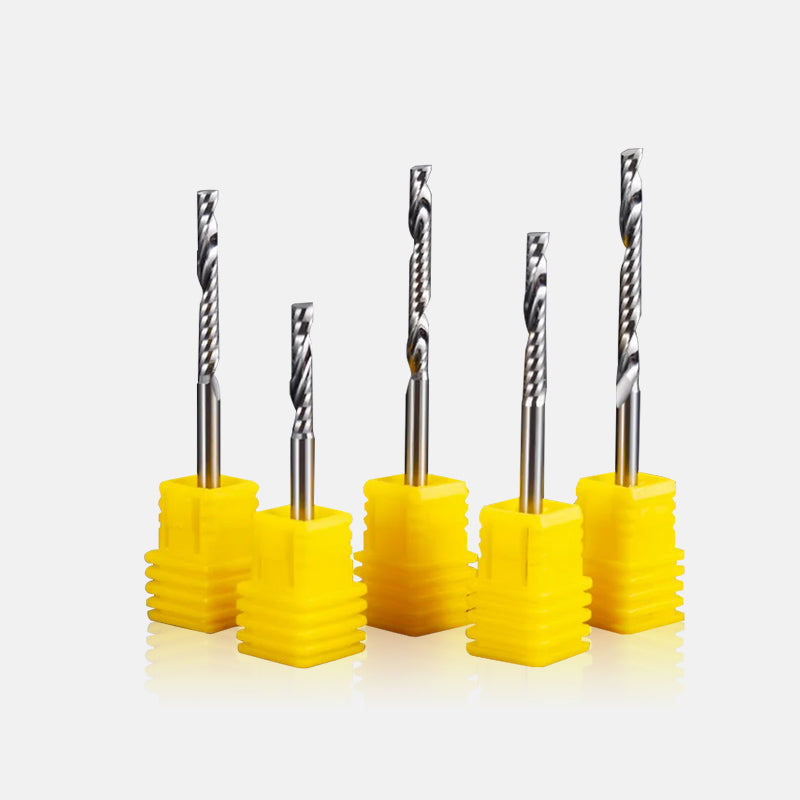

Spiral 'O' Single Flute Bit - 1/8″ Shank - Makera
Spiral 'O' Single Flute Bit - 1/8″ Shank - Makera
Spiral 'O' Single Flute Bit - 1/8″ Shank - Makera
Spiral 'O' Single Flute Bit - 1/8″ Shank - Makera

    Spiral 'O' Single Flute Bit - 1/8″ Shank

    $4.99
    Shipping policy
      DESCRIPTION
      The Spiral 'O' Single Flute Bit allows for superior chip evacuation, reducing the risk of chip re-cutting and ensuring a cleaner cut.

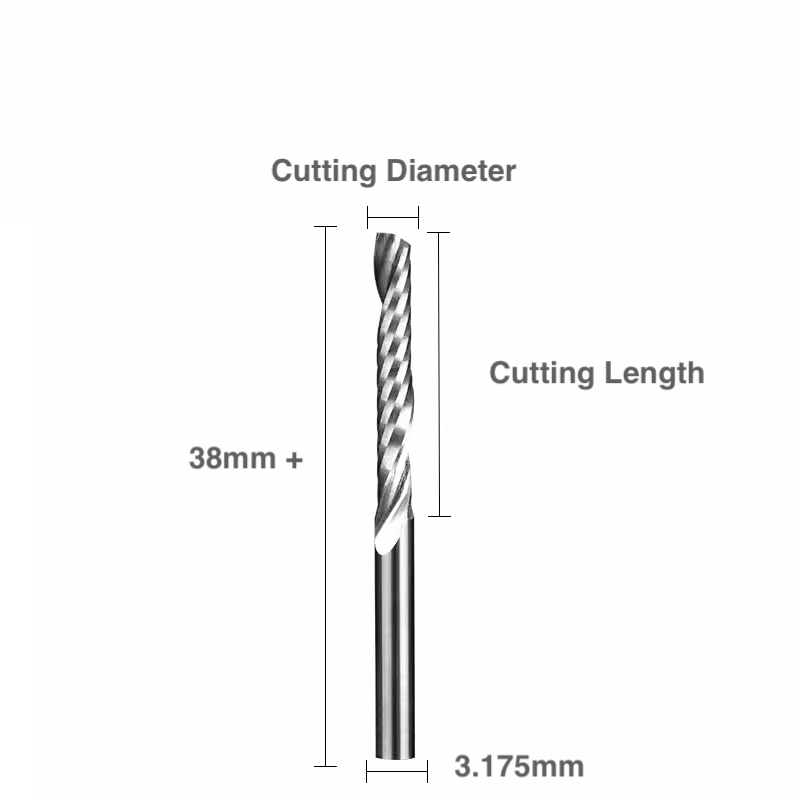

      Specifications:
      Shank Diameter: 3.175mm
      Total Length: 38mm or more
      Material: Solid Carbide

      Applications:
      Sheet/Plate/Block Contour cutting, Face cleaning, Pocket milling, and Hole boring, etc.

      Materials:
      Wood, Plastics, Composite materials, etc.


      Tool Reference Parameters:

      * RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
      PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

      Tools Aluminum Brass Carbon Fiber Copper Hardwood PCB Plastic Softwood
      1*3mm Flat End - - - - RPM:10000
      Feed:1000
      PFeed:300
      DOC:0.5       		- RPM:10000
      Feed:1000
      PFeed:300
      DOC:0.5       		RPM:10000
      Feed:1000
      PFeed:300
      DOC:1
      1.5*8mm Flat End - - - - RPM:10000
      Feed:1000
      PFeed:300
      DOC:0.5       		- RPM:10000
      Feed:1000
      PFeed:300
      DOC:0.5       		RPM:10000
      Feed:1000
      PFeed:300
      DOC:1
      2*12mm Flat End - - - - RPM:10000
      Feed:1000
      PFeed:300
      DOC:0.5       		- RPM:10000
      Feed:1000
      PFeed:300
      DOC:0.5       		RPM:10000
      Feed:1000
      PFeed:300
      DOC:1
      2.5*15mm Flat End - - - - RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		- RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		RPM:10000
      Feed:1000
      PFeed:300
      DOC:2
      3.175*17mm Flat End - - - - RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		- RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		RPM:10000
      Feed:1000
      PFeed:300
      DOC:2
      3.175*25mm Flat End - - - - RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		- RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		RPM:10000
      Feed:1000
      PFeed:300
      DOC:2
      3.175*32mm Flat End - - - - RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		- RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		RPM:10000
      Feed:1000
      PFeed:300
      DOC:2
      3.175*42mm Flat End - - - - RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		- RPM:10000
      Feed:1000
      PFeed:300
      DOC:1       		RPM:10000
      Feed:1000
      PFeed:300
      DOC:2
